HULTDINS
Log grapple
SuperGrip I 260

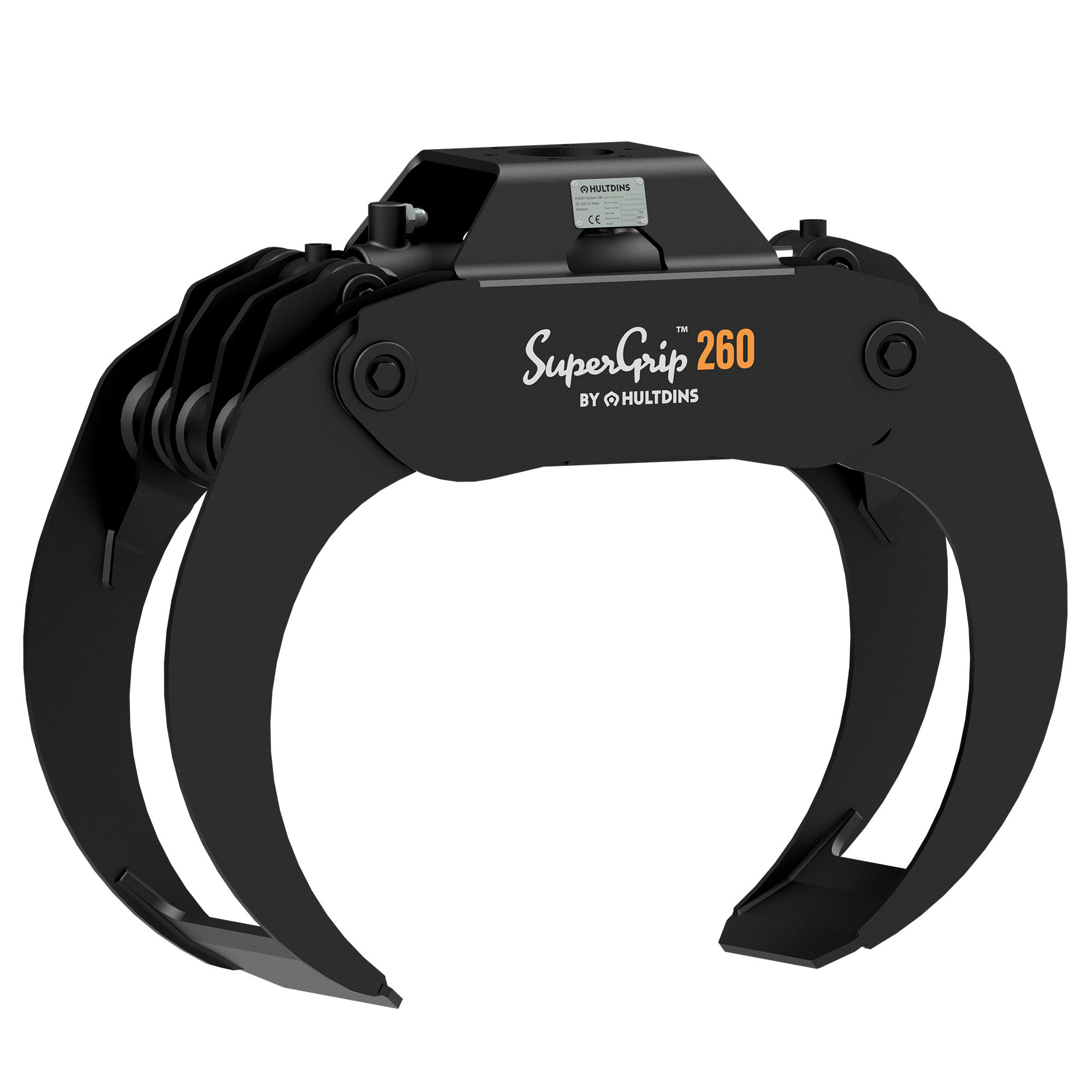

Log grapple SuperGrip I 260
2.830,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Product no.: 0660360
Description
- High-quality, compact Log grapple for professional use
- Design and workmanship optimized over many years
- Typical application: Light and medium Forwarders, Municipal vehicles, Mini excavators 3-6 t
- Two parallel bars made from high-strength cast iron
- Use of of high-strength fine-grained steel and large bearings
- All Bolts in expander design - prevent any play
- All bearings equipped with WIELAND bronze bushes
- Upper part of the grapple with smooth outer part, very easily accessible
- Extremely durable Hydraulic cylinder with end position damping; Up to 250 bar working pressure
- High resilience and reliability minimize downtimes
- Excellent geometry for easy bundling and high filling level
- Movable piston rod guard (0660975) as an option, protects the Piston rod even when the grapple is open
- Long service life without problems
- Combinable with grapple saw SuperSaw 550

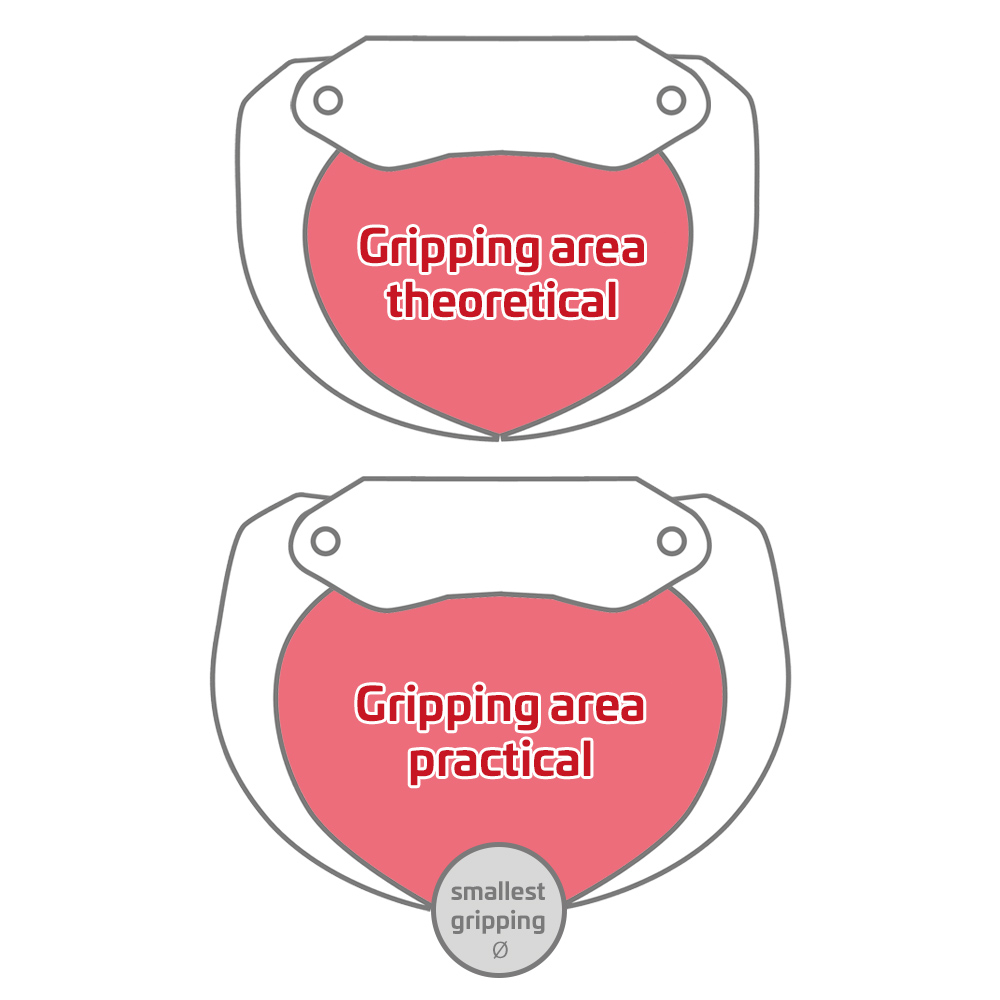

- Opening width 1.525 mm, cross-sectional area 0.26 sqm, Cross-sectional area practically 0.35 sqm
- Weight 187 kg, continuous load max. 3,000 kg, working pressure max. 250 bar
