HULTDINS
Log grapple
SuperGrip I 500-S

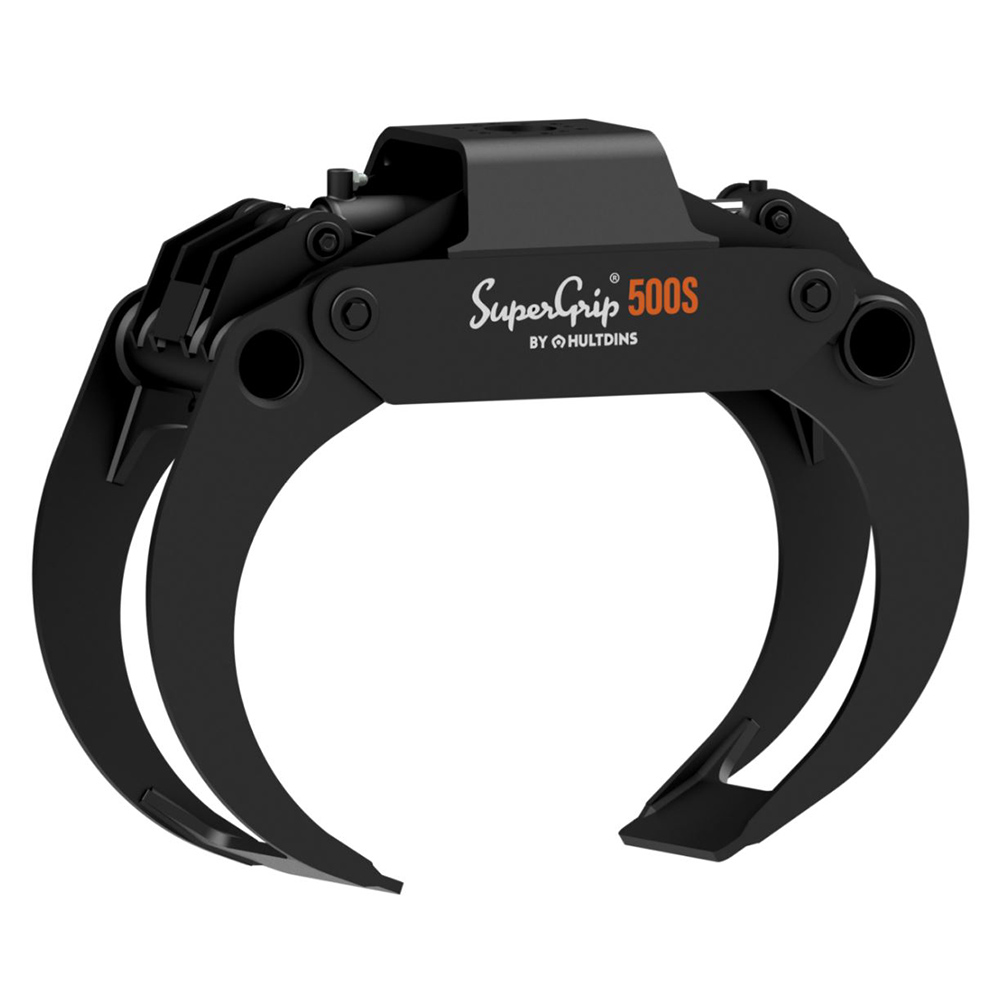

Log grapple SuperGrip I 500-S
6.750,00 €
Prices excl. VAT plus Shipping costs
Please login, to see your prices as a reseller. Don't have an account yet? Register quick and easy.
Product no.: 0744000
Description
- High-quality, very stable grapple for heavy-duty use
- Typical application: Strong long timber cranes 20-35 mt
- Suitable for Excavators 18-22 t, Handling machines 18-22 t, very strong Forwarders and Combination machines with cranes e. g.B. X140, M142, M202
- Over many years of optimized design and workmanship
- Very strong upper part with bolt circle 6x17-173 mm and 6x20-203 mm for large loads and stable connection to the rotator
- Claws made of 20 mm thick side plates made of STRENX and claw cutting edges made of HARDOX
- Two parallel rods
- Constructed from high-strength fine-grained steel with large bearings
- All Bolts in expander design - prevent any play
- All bearings equipped with WIELAND bronze bushes
- Extremely durable Hydraulic cylinder with end position damping; Up to 250 bar working pressure
- High resilience and reliability minimize downtimes
- Excellent geometry for easy bundling and high filling level
- Movable piston rod protection as an option, protects the Piston rod even when the grapple is open
- Long trouble-free service life - no parts that get easily lost
- Combines with SuperSaw 550, 555-S, 650-S
- Opening width 2.268 mm, Cross-sectional area 0.50 sqm, Cross-sectional area practically 0.6 sqm
- Weight 434 kg, max. continuous load 8,000 kg
